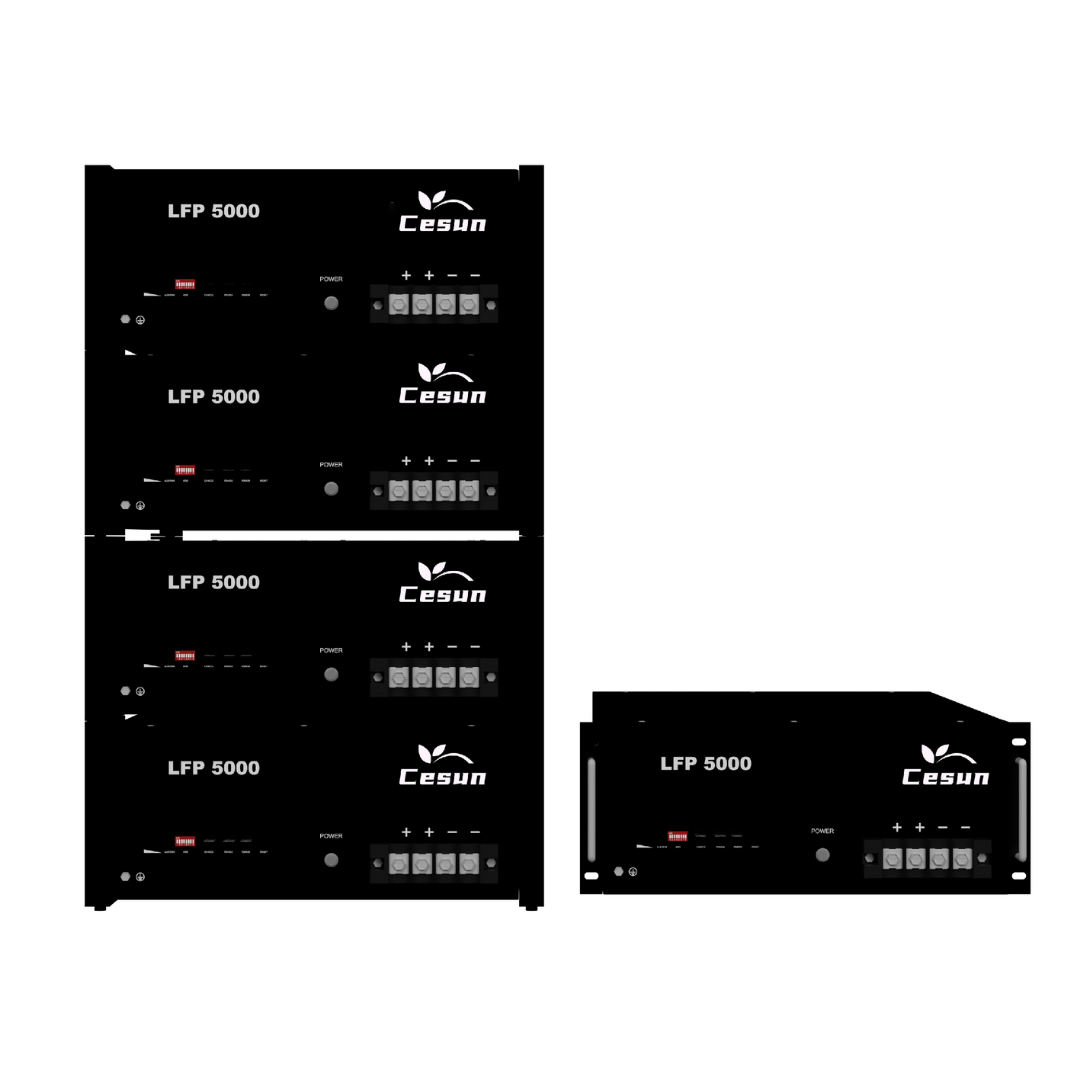

Cesun LFP 5000 LV – 51.2V 100Ah Lithium Battery

Cesun LFP 5000 LV – 51.2V 100Ah Lithium Battery

  • ⚡ High inverter compatibility

  • ❄️ Natural cooling system

  • ⏳ >15 Years life span

  • 🔋 Reliable LFP cells

  • 📈 Scalable up to 80kWh (16 in Parallel)

  • 🔄 Cells cycle times: 6000 cycles

  • 🔗 CANbus standard connection

  • 🛡️ IP20 Rating with triple hardware protection

  • 🧠 Smart BMS system to optimize the performance

LFP 5000 – 51.2V 100Ah

🔧 Electrical Characteristics

  • Module Type: LFP 5000
  • Nominal Capacity (at 25°C): 5.12kWh
  • Usable Capacity (90% DOD): 4.6kWh
  • Nominal Discharge/Charge Current: 50A / 50A
  • Operating Voltage Range: 43~58V
  • Nominal Voltage: 51.2Vdc
  • Weight: 49.5kg
  • Dimensions (mm): 453×433×177mm
  • Certificates: CE, UN38.3, IEC62619, IEC63056

🌡️ Environmental & Operating Conditions

  • Operating Condition: Indoor
  • Temperature (Charge): 0~45°C
  • Temperature (Discharge): -10~50°C
  • Humidity: Up to 90% (non-condensing)
  • Pollution Degree: 3
  • Over Voltage Category: II
  • Cooling Type: Natural cooling
  • IP Rating: IP20
  • Protective Class: I
  • Max. Number in Parallel: 16

🔒 Safety & Communication

  • Life Span: >15 years
  • Warranty: 10 years
  • Communication Interface: CAN / RS485
  • Protection Mode: Triple hardware protection
  • Battery Protection: Over-current / Over-voltage / Short circuit / Under-voltage

📦 Packing Configuration

  • Pallet Dimensions: 1100×1100×870mm
  • Pallets per Container: 20 (20GP), 40 (40HQ)
  • Pieces per Pallet: 12
  • Pieces per Container: 240 (20GP), 480 (40HQ)
